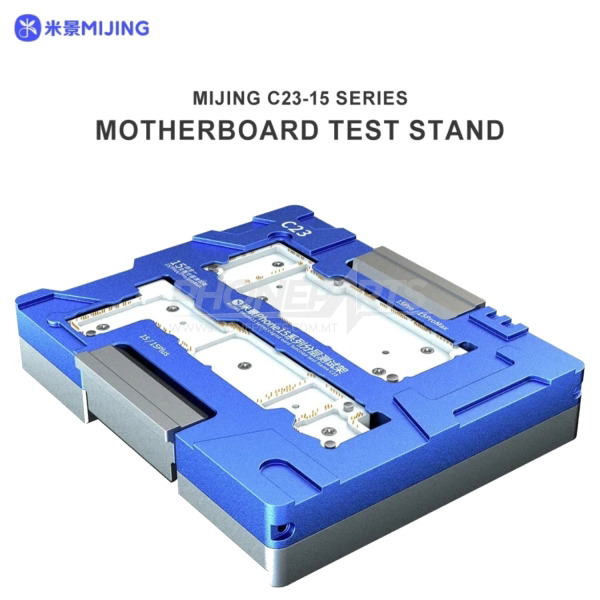

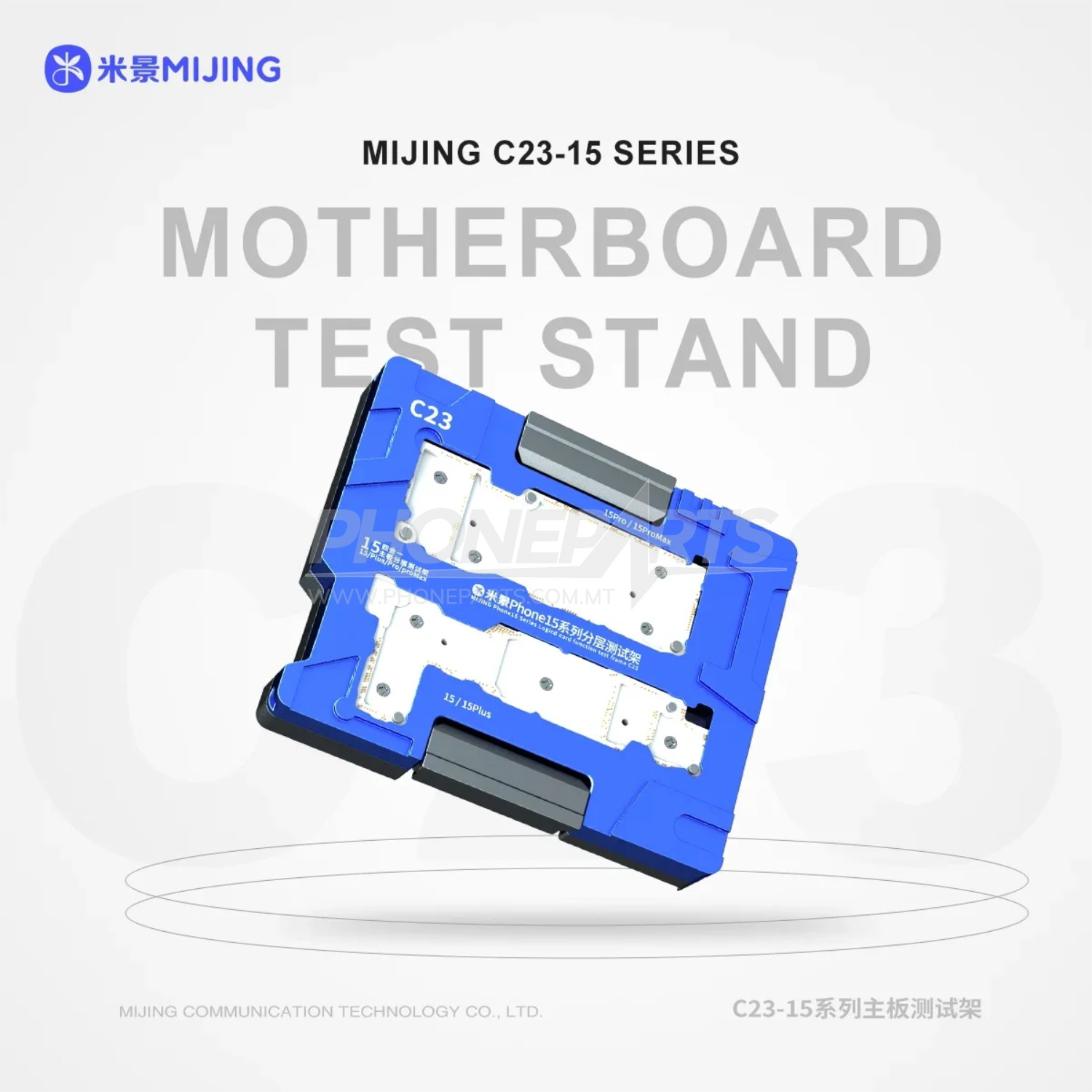

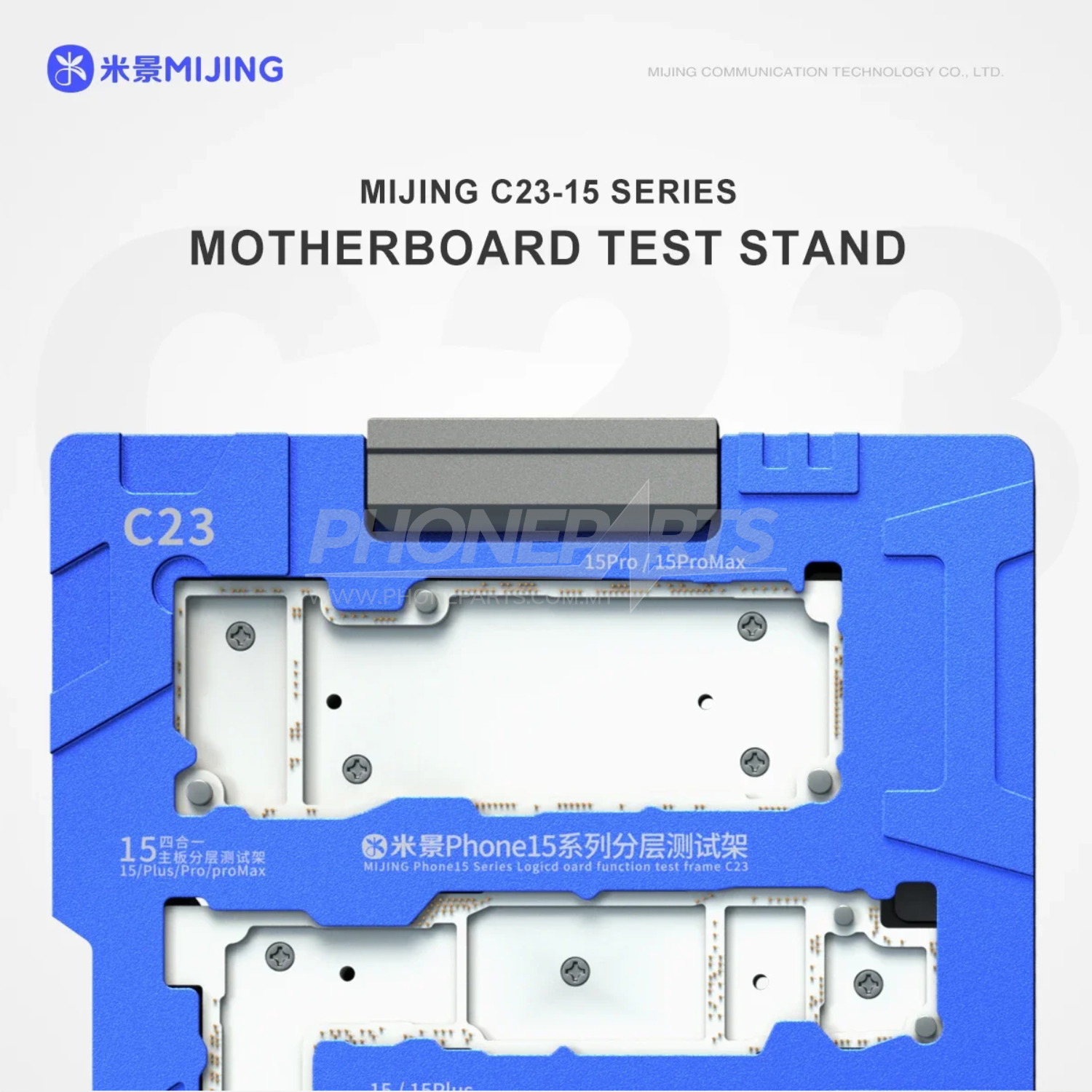

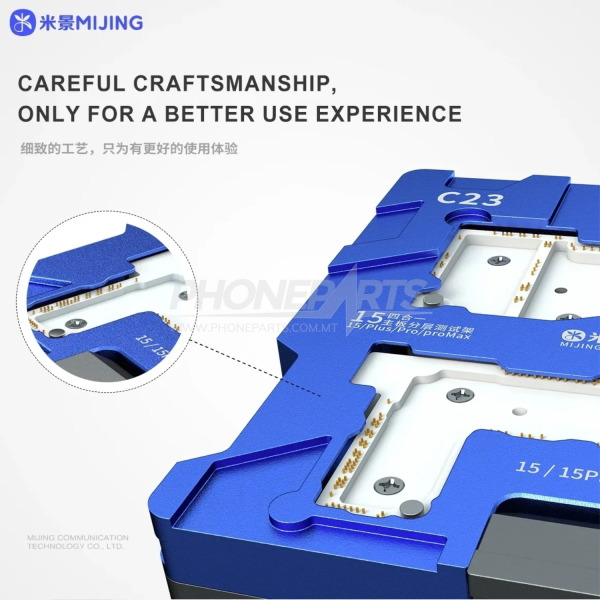

MiJing C23 Motherboard Middle Layer Testing Fixture for iPhone 15 SERIES

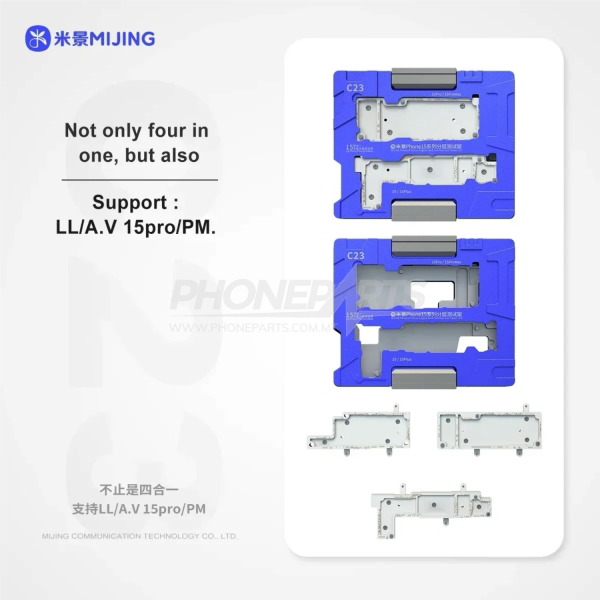

MiJing C23 Motherboard Middle Layer Testing Fixture for iPhone 15/15Plus/15Pro/15Pro Max

Features:

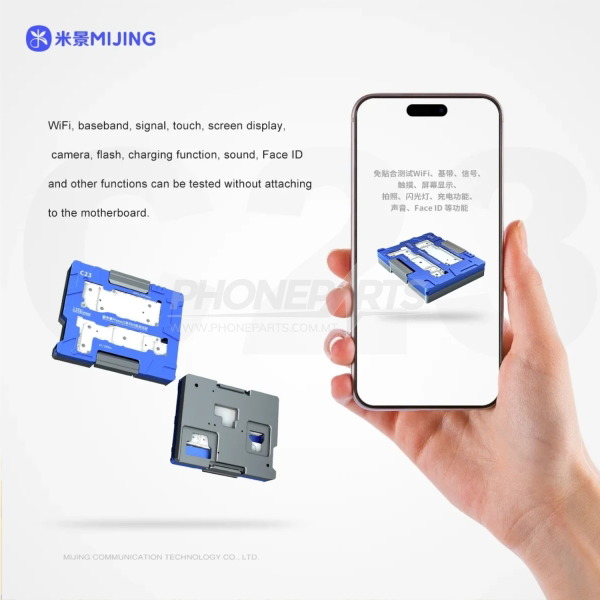

Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, and increase maintenance speed.

Check in advance to avoid duplicate disassembling and breaking the motherboard.

Decomposition for iPhone 15/15Plus/15Pro/15Pro Max Middle Layer simply equipped the test fixture

Install: Put in the lower main board, put on the pinboard, put the top board in, and then cover the test rack.

The first way to connect the screen line, boot, power cord, or battery is to test whether the ink is successful.

The second way is to attach the end plug to the base of the first method to implement the brush function.
